As a extension of Pallet Racking System, if the height of warehouse is enough high and three way forklift can go enough high, it can be applicable.
It can maximize the space efficiency with the passage of forklift to be minimized and with mass products stored as pallet unit.
Characteristics

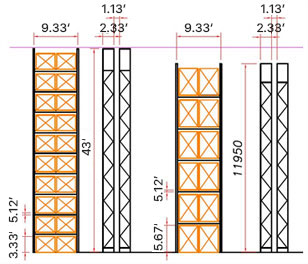

Because the dedicated special rack forklift is used, typically compared with normal pallet racking system, it can store more than double or triple times high even with the half of passage width.
Racks can be used with any type of forklift and standard ranges of racks are broad and can be high enough to 13m(about 43ft)
The strict flatness of bottom floor should be required.
In case of loading high, pallet size and the shape of products should be regular. Because the center of load can vary by pallet size and product height, Forklift load allowance also can be varied by the height and be limited by the moel
As rack, itself, is shaping the building structure, Building High Racking system is also available. Construction cost, being compared with the building and rack system separately installed as a unit, is 20% cost effective.
