Mezzanine Rack

• To make the most of the space of warehouse with high roof, there can be a 2nd mezzanine and 3rd mezzanine installed in the space. It is cheaper than building 2nd floor and 3rd floor in the warehouse. As frame or column in the rack can be used for making mezzanine, it can save the cost and safe.
• It is suitable for warehouse with clothes or small size product with different models due to its double-sized floor.

Mezzanine Rack Design Criteria example

Title	Specification
Usage	work zone, outbound storage and picking
Rated load	Max. 300-500 kg/m
Type	H-Beam type
Install height	drawing standard
Coating	designation
Area	refer to drawing
H-Beam post	Ø150A*6T or 150*150*6T
Main Beam	H-250*125*6*9
Sub Beam	H-220*1305.2
Stabilizer	PL-250*250*15T
B.K.T	Standard
Base finished	non-shrink concrete
Hand rail	SQ-40*40*2.3t(powder coating)
Deck Plate	200*40*2.3T&2.6T(galvanized)

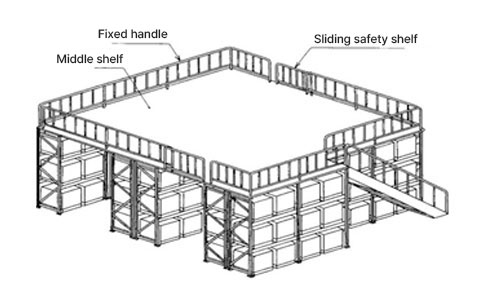

Mezzanine using rack frame

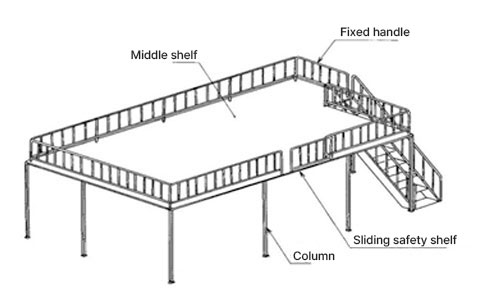

Mezzanine using H-beam
